Enclosed Spring Isolators with Viscous Damping

Product:

RBD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RBD-E2-M12x1.75x100 64 232X127 271X96 112
RBD-F2-M12x1.75x100 20-120 232X127 271X96 112
RBD-F5-M12x1.75x100 122 232X127 271X96 112
RBD-G1-M12x1.75x100 220 232X127 271X96 112
RBD-G5-M12x1.75x100 314 232X127 271X96 112
RBD-H2-M12x1.75x100 50-400 232X127 271X96 112
RBD-H5-M12x1.75x100 420 232X127 271X96 112
RBD-J2-M12x1.75x100 60-580 232X127 271X96 112
RBD-K3-M12x1.75x100 400-1700 202X132 241X101 80
RBD-L3-M12x1.75x100 100-1000 232X127 271X96 112
RBD-N5-M12x1.75x100 800-2400 232X127 271X96 112
RBD-P3-M12x1.75x100 1000-2800 232X127 271X96 112
RBD-P5-M12x1.75x100 500-1800 252X137 297X112 102

Product:

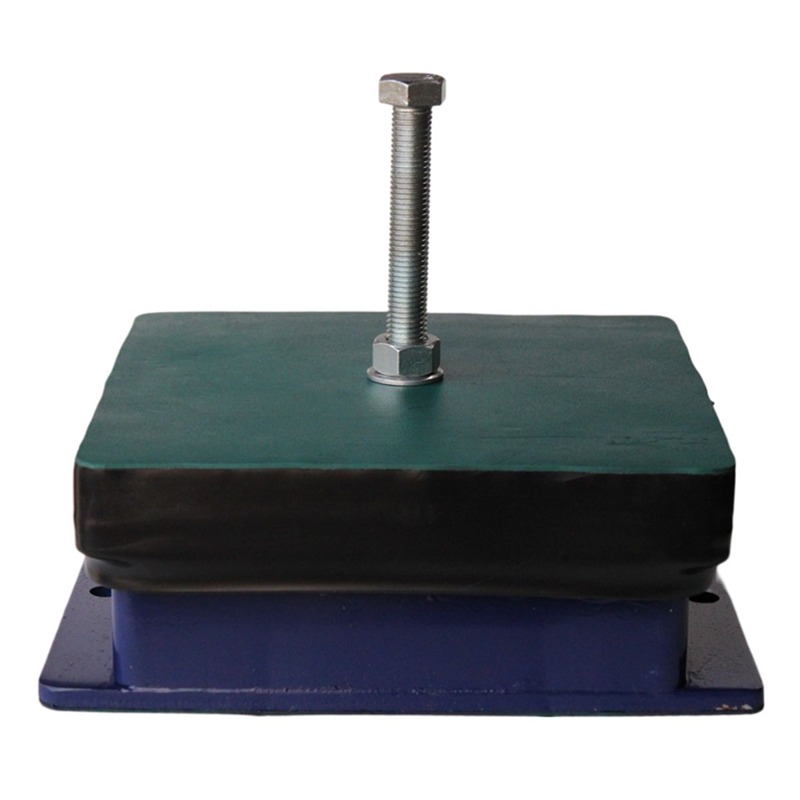

RCD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RCD-E2-M16x2.0x150 96 232X207 271X176 112
RCD-F2-M16x2.0x150 30-180 232X207 271X176 112
RCD-F5-M16x2.0x150 183 232X207 271X176 112
RCD-G1-M16x2.0x150 330 232X207 271X176 112
RCD-G5-M16x2.0x150 471 232X207 271X176 112
RCD-H2-M16x2.0x150 75-600 232X207 271X176 112
RCD-H5-M16x2.0x150 630 232X207 271X176 112
RCD-J2-M16x2.0x150 90-900 232X207 271X176 112
RCD-K3-M16x2.0x150 600-2550 202X177 241X146 80
RCD-L3-M16x2.0x150 150-1500 232X207 271X176 112
RCD-N5-M16x2.0x150 1200-3600 232X207 271X176 112
RCD-P3-M16x2.0x150 1500-4200 232X207 271X176 112
RCD-P5-M16x2.0x150 750-2700 252X228 291X196 102

Product:

RDD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RDD-E2-M16x2.0x150 128 232X207 271X176 112
RDD-F2-M16x2.0x150 40-240 232X207 271X176 112
RDD-F5-M16x2.0x150 244 232X207 271X176 112
RDD-G1-M16x2.0x150 440 232X207 271X176 112
RDD-G5-M16x2.0x150 628 232X207 271X176 112
RDD-H2-M16x2.0x150 100-800 232X207 271X176 112
RDD-H5-M16x2.0x150 840 232X207 271X176 112
RDD-J2-M16x2.0x150 110-1200 232X207 271X176 112
RDD-K3-M16x2.0x150 800-3400 202X177 241X146 80
RDD-L3-M16x2.0x150 200-2000 232X207 271X176 112
RDD-N5-M16x2.0x150 1600-4800 232X207 271X176 112
RDD-P3-M16x2.0x150 2000-3500 232X207 271X176 112
RDD-P5-M16x2.0x150 1000-3000 252X228 291X196 102

Product:

RFD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-J2-M16x2.0x100 180-1800 232X288 291X256 112
RFD-K6 -M16x2.0x100 1200-5100 202X269 241X211 85
RFD-L4 -M16x2.0x100 300-3000 233X288 291X256 112
RFD-P4 -M16x2.0x100 3000-8400 233X288 291X256 112
RFD-P5 -M16x2.0x100 1500-5100 252X317 291X286 102
RFD-N5 -M16x2.0x100 2400-7200 233X288 291X256 112

Product:

RGD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RGD-J2-M16x2.0x100 210-2100 288X288 326X256 122
RGD-K6 -M16x2.0x100 1400-5950 288X288 326X256 122
RGD-L4 -M16x2.0x100 350-3500 288X288 326X256 122
RGD-P4 -M16x2.0x100 3500-9800 288X288 326X256 122
RGD-P5 -M16x2.0x100 1750-6300 317X317 356X286 112
RGD-N5 -M16x2.0x100 2800-8400 288X288 326X256 122

Product:

RHD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RHD-J2-M16x2.0x100 240-2400 288X288 326X256 122
RHD-K6 -M16x2.0x100 1600-6800 288X288 326X256 122
RHD-L4 -M16x2.0x100 400-4000 288X288 326X256 122
RHD-P4 -M16x2.0x100 4000-11200 288X288 326X256 122
RHD-P5 -M16x2.0x100 2000-7200 317X317 356X286 112
RHD-N5 -M16x2.0x100 3200-9600 288X288 326X256 122

Product:

RID

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RID-J2-M16x2.0x100 270-2700 288X288 326X256 122
RID-K6 -M16x2.0x100 1800-7650 288X288 326X256 122
RID-L4 -M16x2.0x100 450-4500 288X288 326X256 122
RID-P4 -M16x2.0x100 4500-12000 288X288 326X256 122
RID-P5 -M16x2.0x100 2250-8100 317X317 356X286 112
RID-N5 -M16x2.0x100 3600-10800 288X288 326X256 122

Product:

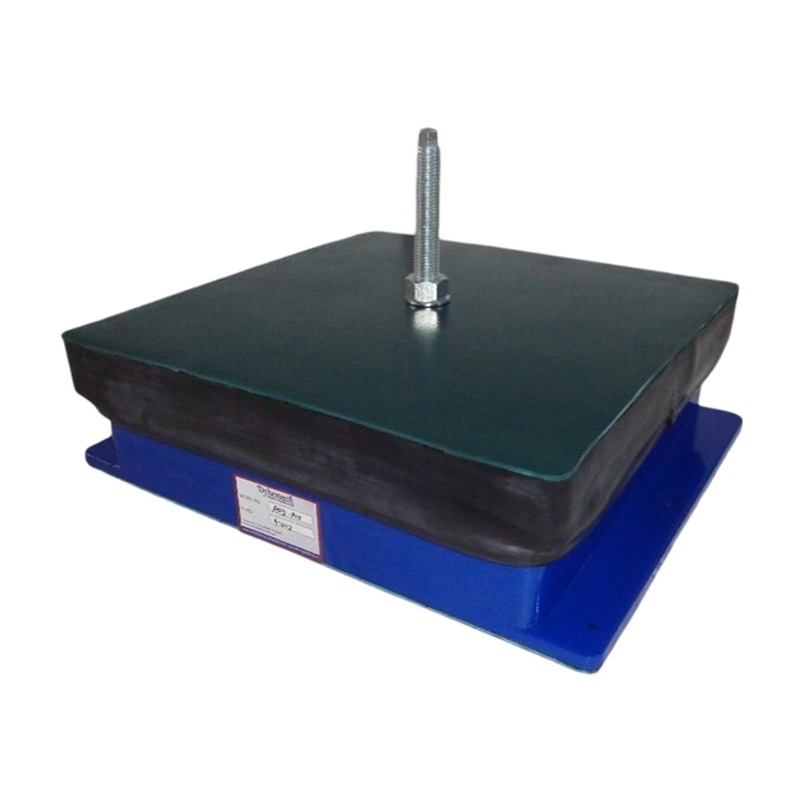

RJD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RJD-J2-M16x2.0x100 300-3000 287X392 326X361 122
RJD-L4 -M16x2.0x100 500-5000 287X392 326X361 122
RJD-P4 -M16x2.0x100 5000-14000 287X392 326X361 122
RJD-P5 -M16x2.0x100 2500-9000 452X337 421X376 112
RJD-N5 -M16x2.0x100 4000-12000 287X392 326X361 122

Product:

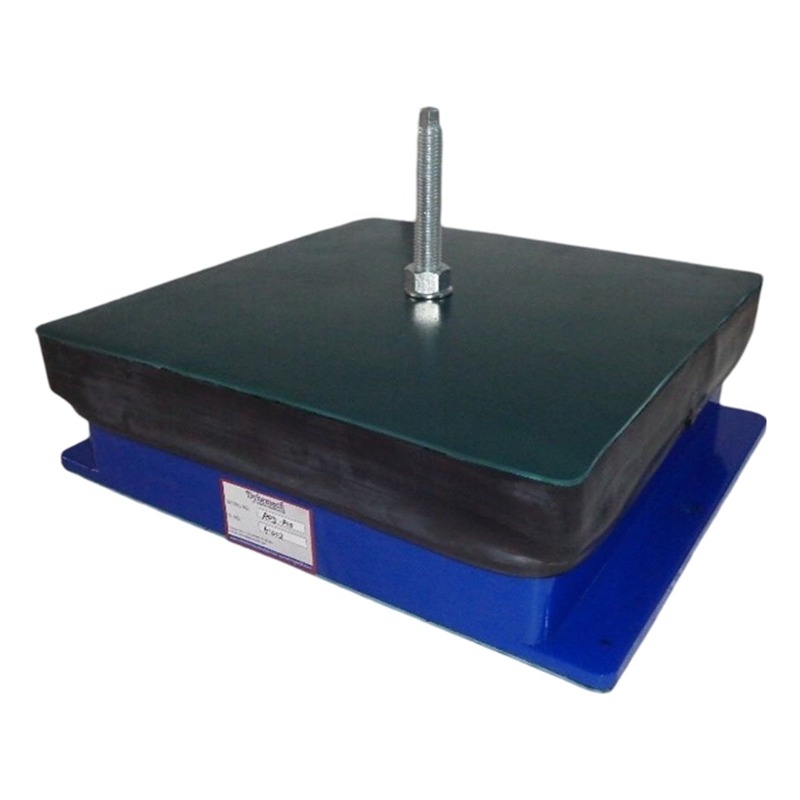

RLD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RLD-J2-M16x2.0x100 360-3600 287X392 326X361 122
RLD-L4 -M16x2.0x100 600-6000 287X392 326X361 122
RLD-P4 -M16x2.0x100 6000-16800 287X392 326X361 122
RLD-P5 -M16x2.0x100 3000-10800 452X337 421X376 112
RLD-N5 -M16x2.0x100 4800-14400 267X392 362X361 122

Product:

RPD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RPD-J2-M16x2.0x100 480-4800 392X392 441X361 122
RPD-L4 -M16x2.0x100 800-8000 392X392 441X361 122
RPD-P4 -M16x2.0x100 8000-22400 392X392 441X361 122
RPD-P5 -M16x2.0x100 4000-14400 442X442 491X411 112
RPD-N5 -M16x2.0x100 6400-19200 392X392 441X361 122

Product:

RTD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RTD-J2-M16x2.0x100 600-6000 448X393 551X361 127
RTD-L4 -M16x2.0x100 1000-10000 448X393 551X361 127
RTD-P4 -M16x2.0x100 10000-28000 448X393 551X361 127
RTD-P5 -M16x2.0x100 5000-18000 496X466 535X441 117
RTD-N5 -M16x2.0x100 8000-24000 448X393 551X361 127

Product:

RXD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RXD-J2-M16x2.0x100 720-7200 448X448 486X416 127
RXD-L4 -M16x2.0x100 1200-12000 448X448 486X416 127
RXD-P4 -M16x2.0x100 12000-33600 448X448 486X416 127
RXD-P5 -M16x2.0x100 6000-21600 498X498 536X466 117
RXD-N5 -M16x2.0x100 9600-28800 448X448 486X416 127

Product:

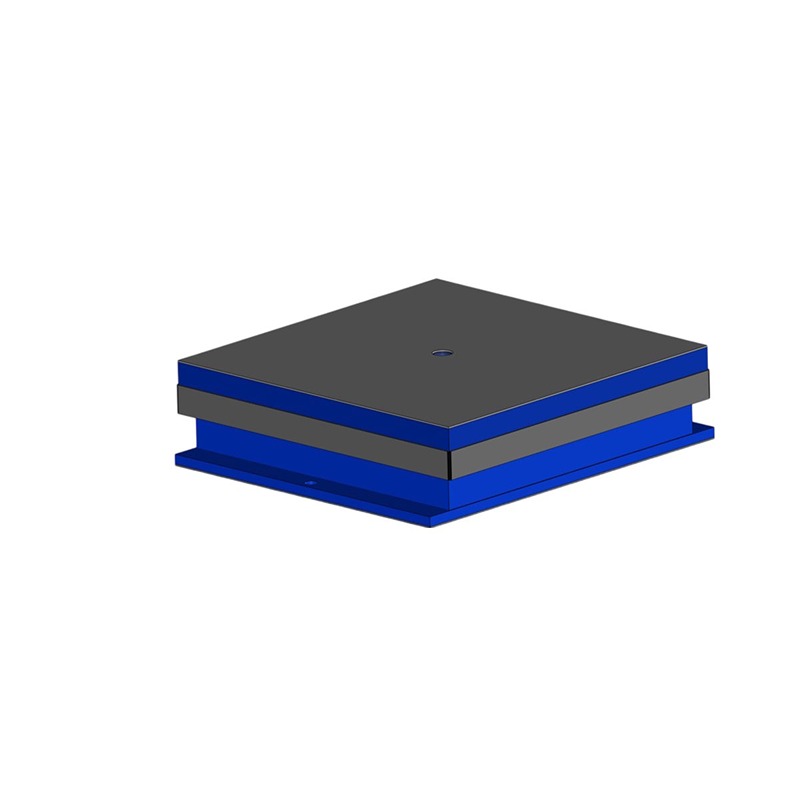

RYD

Description:

Spring isolators with multi-degree restrainer are designed to provide high vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with high energy absorption capabilities of a secondary elastomeric support. These dampers are particularly effective in applications where significant reduction of shock is required such as power presses, shearing machines, Press Brake etc.

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RYD-J2-M16x2.0x100 750-7500 448X448 486X416 127
RYD-L4 -M16x2.0x100 1250-12500 448X448 486X416 127
RYD-P4 -M16x2.0x100 12500-35000 448X448 486X416 127
RYD-P5 -M16x2.0x100 6250-22500 498X498 536X466 117
RYD-N5 -M16x2.0x100 10000-30000 448X448 486X416 127
